What is the Tellus Power 360kW DC Fast Charger?

The Tellus Power 360kW DC Fast Charger is a compact all-in-one DC charging station designed for high-demand charging locations.

How much charging power does the Tellus Power 360kW charger provide?

The charger delivers up to 360kW in single charging mode, with a maximum output current of up to 500A.

Can the 360kW charger charge two vehicles at the same time?

Yes. In parallel charging mode, the charger can provide up to 180kW to each of two connected vehicles.

What connector options are available?

Available connector configurations include CCS1 + CCS1, CCS1 + NACS, and CCS1 + CHAdeMO.

What charging protocol does the 360kW charger support?

The charger supports OCPP 1.6J for charging network communication.

What driver access and payment options are supported?

The charger supports RFID access using ISO/IEC 14443A/B and can be configured with an optional credit card reader.

Is the Tellus Power 360kW charger Buy America compliant?

Yes. The Tellus Power 360kW DC Fast Charger is listed as Buy America compliant.

Tellus Power 360kW DC Fast Charger

Higher Output for Sites with More Charging Demand

Built for locations that need higher charging capacity with the flexibility to deliver full power to one vehicle or serve two vehicles simultaneously from one all-in-one charger.

Download Brochure

Other Avalible Power Range

60kW 180kW 240kW 300kW

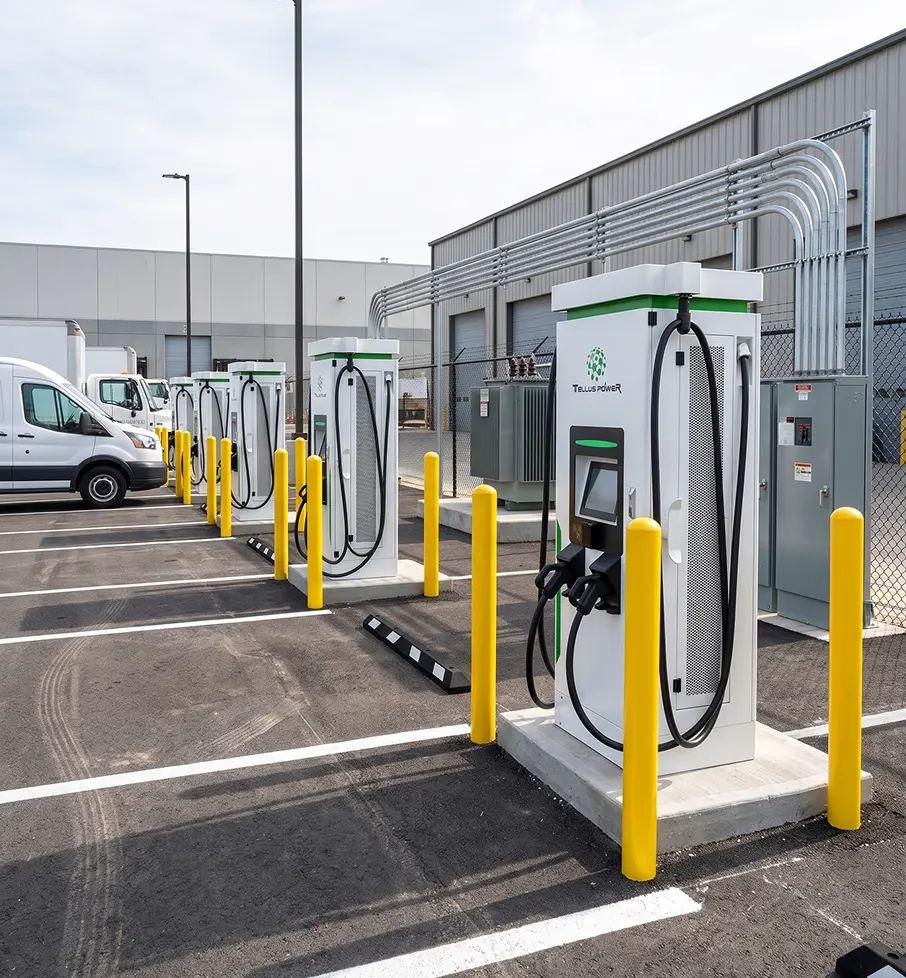

Row of electric vehicle charging stations with white vans parked and a fenced transformer area in a parking lot.

Built for More Power and Flexible Charging

The 360kW charger combines high-current DC charging with parallel power delivery, multiple connector configurations, and a compact all-in-one architecture for sites that need more flexibility from each charging position.

Up to 360kW maximum charging output

150–1000VDC output voltage range

Up to 500A maximum output current

360kW single or 2 × 180kW parallel charging

Smart Design Choices

Compact all-in-one charger

Air-cooled power modules

500A liquid-cooled CCS cable

Integrated cable retractor

Dual-connector configuration

Built for Your Brand

RFID access control

Optional credit card reader

Ethernet, 4G and Wi-Fi connectivity

OCPP 1.6J protocol support

10-inch touchscreen interface

Who It's Built For

A high-output DC fast charger for sites where charging demand, vehicle turnover, and available charging time make higher power useful.

Public Charging Hubs

Support high-demand public charging locations where faster sessions can help keep vehicles moving.

Retail Centers

Add high-power charging to destinations where drivers can charge while visiting stores, restaurants, and nearby services.

Fleet-Support Sites

Give fleet vehicles access to high-power charging while supporting single-vehicle or parallel charging configurations.

Highway Locations

Provide higher charging capacity for sites serving drivers making longer-distance journeys or shorter charging stops.

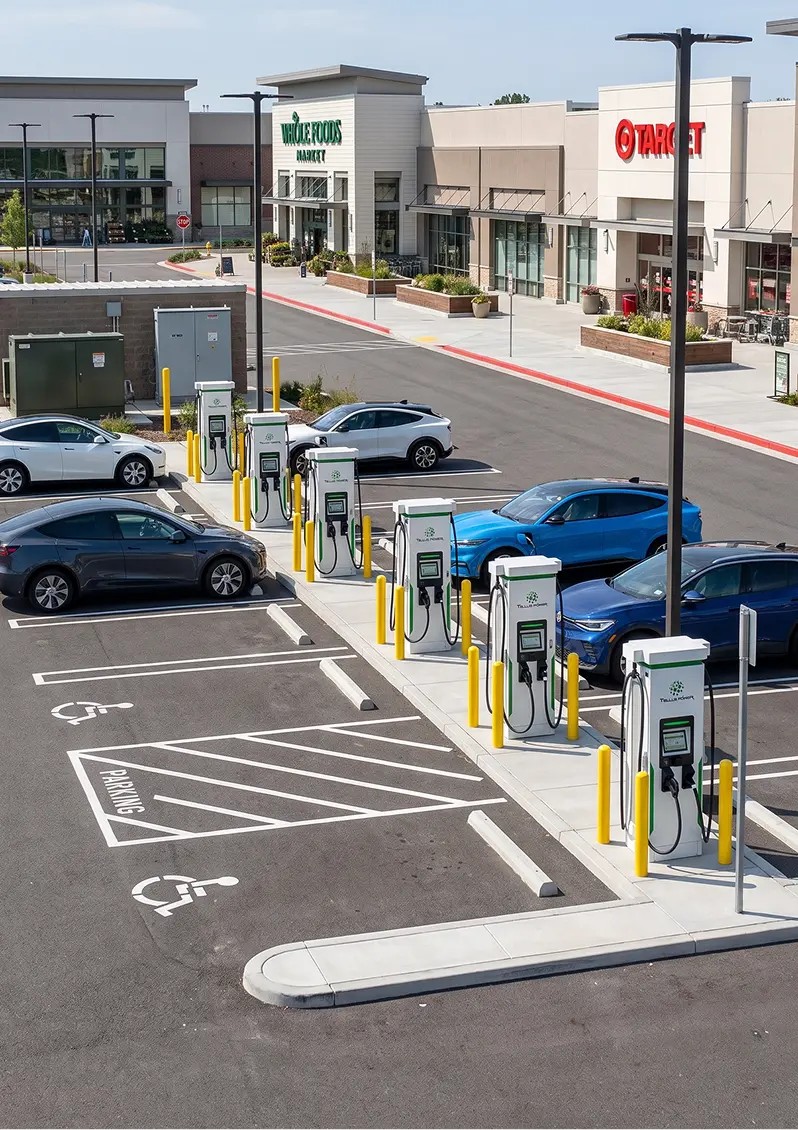

Row of electric vehicle charging stations with some cars parked at a sunny shopping center lot.

Every Feature Has a Job

The 360kW charger is built around more than maximum charging power - its connector flexibility, parallel operation, cable management, and communication capabilities support different charging environments.

High-Output Charging

Deliver up to 360kW in single-output operation when charging speed and vehicle turnaround matter.

Parallel Charging

Charge two vehicles simultaneously at up to 2 × 180kW, with a maximum parallel-mode current of 400A.

Flexible Connector Configuration

Configure the charger with CCS1 + CCS1, CCS1 + NACS, or CCS1 + CHAdeMO based on site and vehicle requirements.

Cable & Thermal Management

Liquid-cooled 500A CCS cables, an integrated cable retractor, and air-cooled power electronics help support high-power operation.

Charge with a Tap, Scan, or Swipe

RFID card authentication

Optional credit card reader

10-inch touchscreen interface

Ethernet, 4G & Wi-Fi communication

Certified, Compliant & Trusted

The Tellus Power 360kW charger is identified as Buy America compliant and specifies UL-2202 regulatory compliance, along with electrical protection for ground faults, surge events, abnormal voltage or current conditions, temperature, output short circuits, and emergency shutdown.

Ready for higher-output DC fast charging?

DynaChrg can help evaluate whether a 360kW charger fits your site's traffic patterns, charging demand, electrical capacity, and operating requirements.
