What is the Tellus Power 240kW DC Fast Charger?

The Tellus Power 240kW DC Fast Charger is a compact all-in-one commercial charging station designed for sites that need high-power DC charging with flexible dual-connector configurations.

How much charging power does the Tellus Power 240kW charger provide?

The charger provides up to 240kW of DC fast charging power with a maximum output current of up to 500A.

What connector options are available?

Available configurations include CCS1 + CCS1, CCS1 + NACS, NACS + NACS, and CCS1 + CHAdeMO.

Does the 240kW charger support parallel charging?

Yes. The Tellus Power 240kW charger includes parallel charging capability for dual-connector operation.

What charging protocol does the 240kW charger support?

The charger supports OCPP 1.6J for charger communication and backend integration.

What payment and authentication options are available?

The charger supports RFID authentication using ISO/IEC 14443A/B and can be configured with an optional credit card reader.

Where is the Tellus Power 240kW charger best suited?

It is suited for commercial properties, fleet charging sites, public charging locations, and parking or mobility hubs that need higher-power DC charging.

Tellus Power 240kW DC Fast Charger

Compact Power for Multi-Vehicle Charging

Built for commercial charging locations that need strong DC output, flexible connector configurations, and parallel charging capability in a compact all-in-one system.

Download Brochure

Other Avalible Power Range

60kW 180kW 300kW 360kW

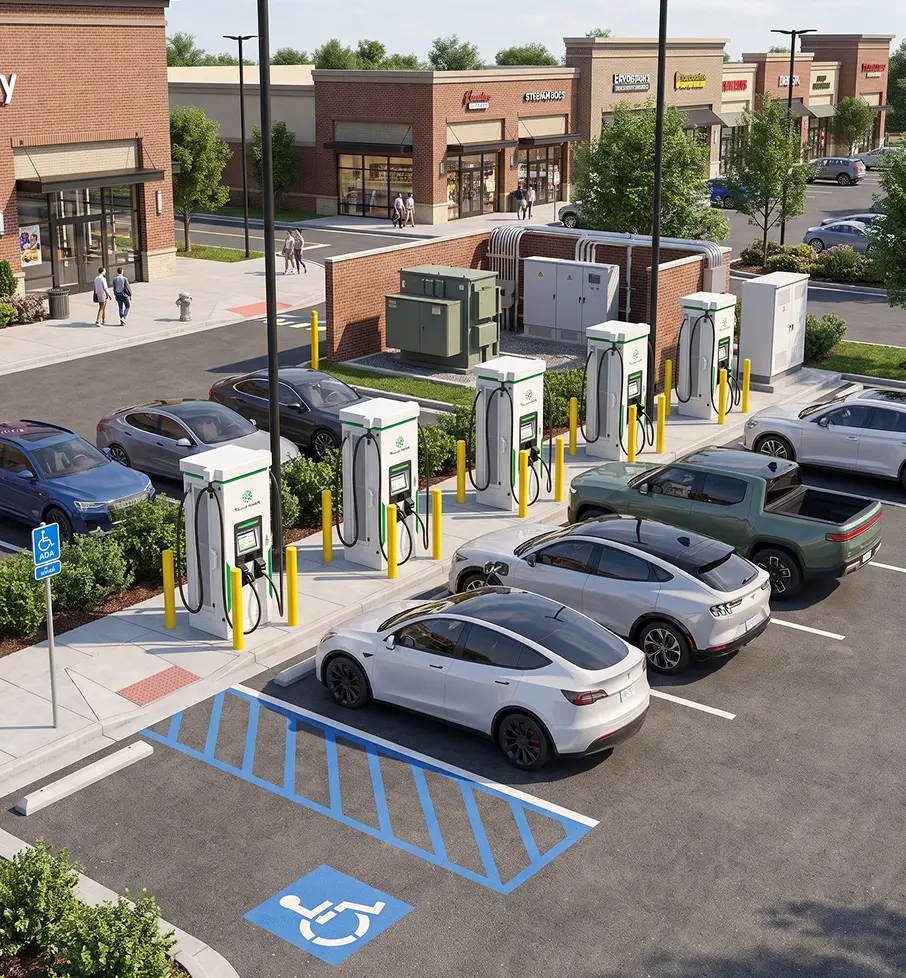

Series of electric vehicle charging stations in a parking lot outside a shopping plaza.

Built for High-Power Charging in a Smaller Footprint

The 240kW charger combines high-current output, parallel charging capability, and multiple connector configurations in one floor-mounted unit for sites that need more flexibility from each charger.

240kW maximum DC charging output

150–1000VDC output voltage range

Up to 500A maximum output current

Parallel charging capability

Smart Design Choices

Compact all-in-one charger

Air-cooled power modules

500A liquid-cooled CCS / NACS cable

Integrated cable retractor

Easy-maintenance design

Built for Your Brand

RFID access control

Optional credit card reader

10-inch touchscreen interface

OCPP 1.6J protocol support

CCS1, NACS and CHAdeMO connector options

Who It's Built For

A versatile DC fast charger for locations that need higher charging capacity without moving to the largest-output charger class.

Commercial Properties

Support customers, visitors, and tenants with faster DC charging at busy commercial destinations.

Fleet Charging Sites

Provide higher-power charging for fleet vehicles operating within scheduled charging windows.

Public Charging Locations

Serve drivers at public charging sites where dependable DC fast charging and connector flexibility matter.

Parking & Mobility Hubs

Add DC fast charging to locations serving mixed vehicle types and varying charging needs.

Four white EV charging stations with green accents lined up in a parking lot near shops.

Every Feature Has a Job

The 240kW system combines high-current charging, multiple connector configurations, and practical cable management to support different types of charging sites.

High-Current Charging

Deliver up to 500A across a 150–1000VDC output range for compatible vehicles.

Parallel Charging Capability

Support simultaneous charging through the unit’s parallel charging functionality when site and vehicle conditions allow.

Four Connector Configurations

Choose from CCS1 + CCS1, CCS1 + NACS, NACS + NACS, or CCS1 + CHAdeMO based on deployment requirements.

Managed Cable Handling

Liquid-cooled CCS / NACS cables and an integrated cable retractor help keep high-current charging cables organized around the unit.

Driver Access & Interface

Simple Access at the Charger

RFID Authentication

Optional Credit Card Reader

10-Inch Touchscreen

Certified, Compliant & Trusted

The Tellus Power 240kW charger specifies UL-2202 compliance, NEMA 3S / IP54 protection, IK10 impact protection, and built-in safeguards for ground faults, surge events, over-voltage, under-voltage, over-current, missing ground, temperature, short circuits, and emergency shutdown.

Is 240kW Right for Your Charging Site?

DynaChrg can help evaluate whether this charger fits your vehicle mix, charging demand, connector requirements, and available site power.
